Colab 2
-

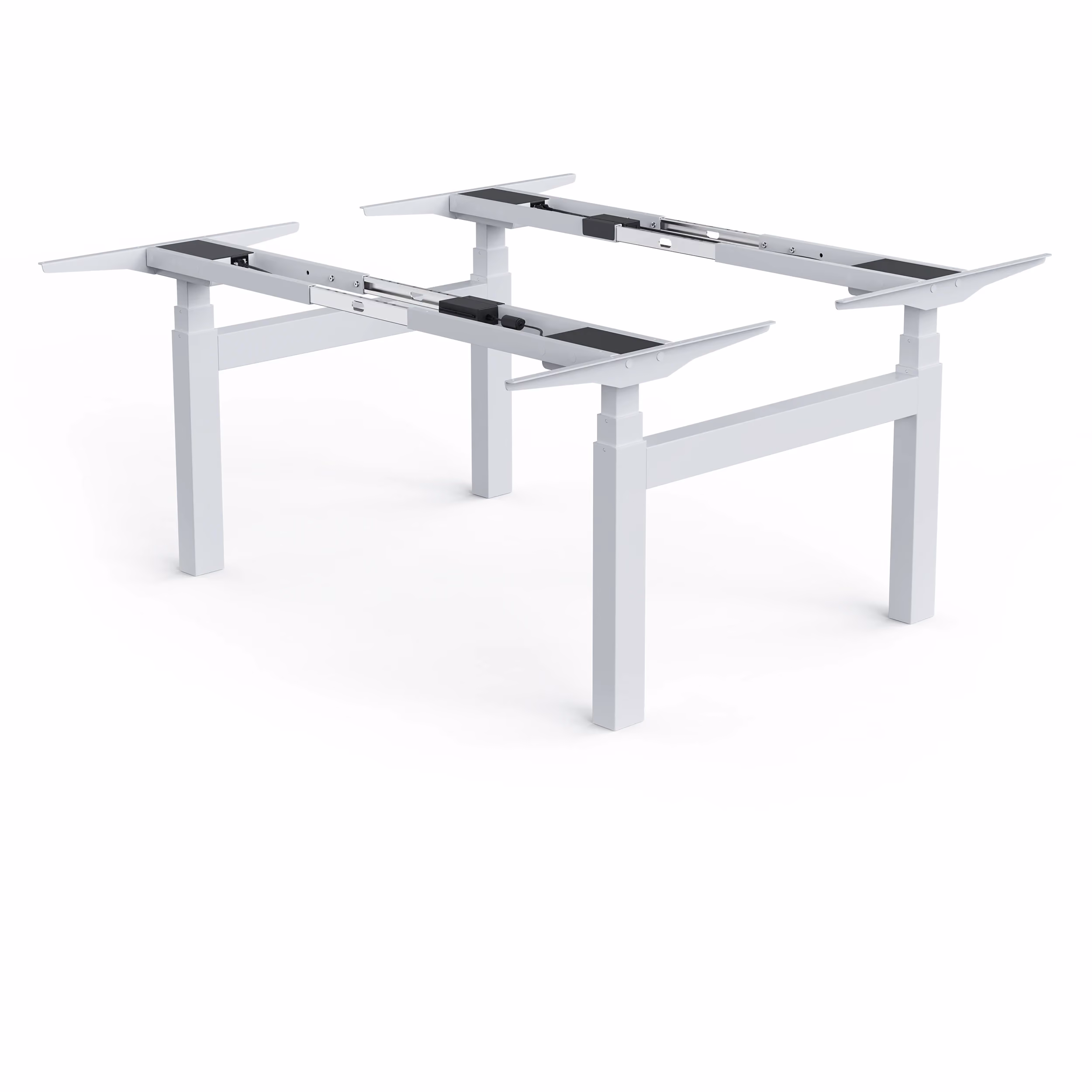

Dual desk frame
Collaboration is all about people & organizations working together to accomplish a shared goal.
Colab 2
Collaboration is all about people & organizations working together to accomplish a shared goal.
Collaborate
Colab 2 was developed to increase the cooperative spirit across workplace environments. The unbeaten feeling of comradery envelops the Colab series and delivers a resolute design and functionality. Colab 2 was developed from the basis of the Work series. EN-527-2 Certified.
- Manufactured in Europe
- EN-527-2 certified
Environmental Product Declaration (EPD)
Colab 2 has been verified in accordance with ISO 14025 by an independent, third-party verifier by reviewing results, documents and compliancy with ISO 14025 and ISO 14040/14044.
No items found.
Technical specifications
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Stroke
RD 470
RD 650
SQD 470
SQD 470
CD 650
Tube 1 (mm)
80x60
80x60
70x70
70x70
80
Tube 2 (mm)
70x50
70x50
60x60
60x60
70
Tube 3 (mm)
-
60x40
-
50x50
60
Height (mm*)
667-1137
586-1236
666-1136
585-1235
586-1236
Table top to fit
Width: 800–2800 mm
Depth: 400–1000* mm
*excl. foot (31-41mm) and table top
Standard color range
White: RAL 9016
Silver: RAL 9006
Black: RAL 9005
Noise level
<48dB / silent: 38dB
Velocity/speed
32–40 mm/s
Electronic drive system
iDrive
Lifting Capacity
60kg per column
Electronic drive system
RD: Rectangular Down
SQD: Square Down
CD: Circular Down
*Note
Depending on choice of crossbar,
sidebar and feet
Stroke
RU 470
RD 470
RU 650
RD 650
Tube 1 (inches)
6x4
8x6
6x4
8x6
Tube 2 (inches)
7x5
7x5
7x5
7x5
Tube 3 (Inches)
-
-
8x6
6x4
Height (inches*)
647-1117
667-1137
585-1235
585-1235
Table top to fit
Width: 800–2800 inch
Depth: 400–1000* inch
*excl. foot (31-41 inch) and table top
Standard color range
White: RAL 9016
Silver: RAL 9006
Black: RAL 9005
Noise level
<48dB / silent: 38dB
Velocity/speed
32–40 inch/s
Electronic drive system
480 lb, including table top
Lifting Capacity
480 lb, including table top
Electronic drive system
RU: Rectangular Up
RD: Rectangular Down
SQD: Square Down
CU: Circular Up
*Note
Depending on choice of crossbar,
sidebar and feet
